PVD Li Coater



Application

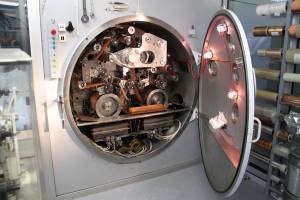

The Z2P150H roll-to-roll coater is intended for producing uniform single and double-sided coatings on polymer films and metal foils and single-sided coatings on flat glass or ceramics substrates by thermal evaporation.



Data Sheet



Substrates: metal foils, polymer films, glass or ceramics plates



Web coating: 150 mm

Substrate thickness:10...100 µm

Maximum roll diameter: 180 mm

Coating: Li

Coating thickness: 1 to 20 µm/per each substrate side

Winding speed: 0.2...2 m/min

Process drum temperature: - 20...+ 20 °C

Pre-treatment: 2 glow discharge devices

Evaporation sources: 2 thermal evaporators

Floor space requirement (L x W x H): 2.1 x 3.0 x 2.1 m



For more information please refer to Overview_Z2P150H.pdf
